Base class for components based on finite-element field maps. More...

#include <ComponentFieldMap.hh>

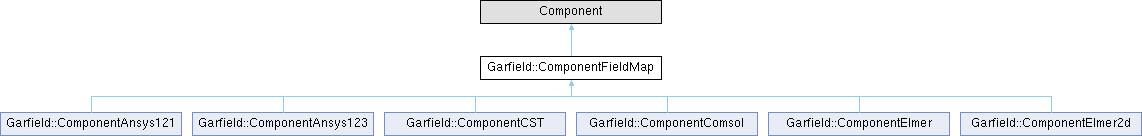

Inheritance diagram for Garfield::ComponentFieldMap:

Classes
struct	Element
struct	Material
struct	Node
struct	WeightingFieldCopy

Public Member Functions
	ComponentFieldMap ()=delete
	Default constructor.
	ComponentFieldMap (const std::string &name)
	Constructor.
virtual	~ComponentFieldMap ()
	Destructor.
bool	Check ()
	Check element aspect ratio.
void	PrintRange ()
	Show x, y, z, V and angular ranges.
void	PrintMaterials ()
	List all currently defined materials.
void	DriftMedium (const size_t imat)
	Flag a field map material as a drift medium.
void	NotDriftMedium (const size_t imat)
	Flag a field map materials as a non-drift medium.
size_t	GetNumberOfMaterials () const
	Return the number of materials in the field map.
double	GetPermittivity (const size_t imat) const
	Return the relative permittivity of a field map material.
double	GetConductivity (const size_t imat) const
	Return the conductivity of a field map material.
void	SetMedium (const size_t imat, Medium *medium)
	Associate a field map material with a Medium object.
Medium *	GetMedium (const size_t imat) const
	Return the Medium associated to a field map material.
void	SetGas (Medium *medium)
	Associate all field map materials with a relative permittivity of unity to a given Medium class.
size_t	GetNumberOfElements () const override
	Return the number of mesh elements.
bool	GetElementNodes (const size_t i, std::vector< size_t > &nodes) const override
	Get the indices of the nodes constituting a given element.
bool	GetElementRegion (const size_t i, size_t &mat, bool &drift) const override
	Get the region/material of a mesh element and a flag whether it is associated to an active medium.
bool	GetElement (const size_t i, double &vol, double &dmin, double &dmax) const
	Return the volume and aspect ratio of a mesh element.
size_t	GetNumberOfNodes () const override
	Return the number of mesh nodes.
bool	GetNode (const size_t i, double &x, double &y, double &z) const override
	Get the coordinates of a mesh node.
double	GetPotential (const size_t i) const
	Return the potential at a given node.
void	EnableCheckMapIndices (const bool on=true)
void	EnableDeleteBackgroundElements (const bool on=true)
	Option to eliminate mesh elements in conductors (default: on).
void	EnableTetrahedralTreeForElementSearch (const bool on=true)
	Enable or disable the usage of the tetrahedral tree for searching the element in the mesh.
void	EnableConvergenceWarnings (const bool on=true)
	Enable or disable warnings that the calculation of the local coordinates did not achieve the requested precision.
Medium *	GetMedium (const double x, const double y, const double z) override
	Get the medium at a given location (x, y, z).
void	ElectricField (const double x, const double y, const double z, double &ex, double &ey, double &ez, Medium *&m, int &status) override
	Calculate the drift field at given point.
void	ElectricField (const double x, const double y, const double z, double &ex, double &ey, double &ez, double &v, Medium *&m, int &status) override
	Calculate the drift field [V/cm] and potential [V] at (x, y, z).
__DEVICE__ void	WeightingField (const double x, const double y, const double z, double &wx, double &wy, double &wz, const std::string &label) override
	Calculate the weighting field at a given point and for a given electrode.
double	WeightingPotential (const double x, const double y, const double z, const std::string &label) override
	Calculate the weighting potential at a given point.
double	DelayedWeightingPotential (double x, double y, double z, const double t, const std::string &label) override
	Calculate the delayed weighting potential at a given point and time and for a given electrode.
void	DelayedWeightingPotentials (const double x, const double y, const double z, const std::string &label, std::vector< double > &dwp) override
	Calculate the delayed weighting potentials at a given point and for a given electrode, for a set of pre-defined times.
bool	IsInBoundingBox (const double x, const double y, const double z) const
bool	Is3d () override
	Does the component have a 3D field (map)?
bool	GetBoundingBox (double &xmin, double &ymin, double &zmin, double &xmax, double &ymax, double &zmax) override
	Get the bounding box coordinates.
bool	GetElementaryCell (double &xmin, double &ymin, double &zmin, double &xmax, double &ymax, double &zmax) override
	Get the coordinates of the elementary cell.
std::map< std::string, std::vector< double > >	GetWeightingPotentials ()
bool	GetVoltageRange (double &vmin, double &vmax) override
	Calculate the voltage range [V].
void	CopyWeightingPotential (const std::string &label, const std::string &labelSource, const double x, const double y, const double z, const double alpha, const double beta, const double gamma)
	Makes a weighting potential copy of a imported map which can be translated and rotated.
double	CreateGPUTransferObject (ComponentGPU *&comp_gpu) override
	Create and initialise GPU Transfer class.
std::array< double, 3 >	ElectricField (const double x, const double y, const double z)
	Calculate the drift field [V/cm] at (x, y, z).
Public Member Functions inherited from Garfield::Component
	Component ()=delete
	Default constructor.
	Component (const std::string &name)
	Constructor.
virtual	~Component ()=default
	Destructor.
virtual void	SetGeometry (Geometry *geo)
	Define the geometry.
virtual void	Clear ()
	Reset.
std::array< double, 3 >	ElectricField (const double x, const double y, const double z)
	Calculate the drift field [V/cm] at (x, y, z).
virtual double	ElectricPotential (const double x, const double y, const double z)
	Calculate the (drift) electrostatic potential [V] at (x, y, z).
virtual const std::vector< double > &	DelayedSignalTimes (const std::string &)
	Return the time steps at which the delayed weighting potential/field are stored/evaluated.
virtual void	DelayedWeightingField (const double x, const double y, const double z, const double t, double &wx, double &wy, double &wz, const std::string &label)
	Calculate the delayed weighting field at a given point and time and for a given electrode.
virtual void	MagneticField (const double x, const double y, const double z, double &bx, double &by, double &bz, int &status)
	Calculate the magnetic field at a given point.
void	SetMagneticField (const double bx, const double by, const double bz)
	Set a constant magnetic field.
virtual bool	IsReady ()
	Ready for use?
double	CellSizeX ()
double	CellSizeY ()
double	CellSizeZ ()
double	IntegrateFluxCircle (const double xc, const double yc, const double r, const unsigned int nI=50)
	Integrate the normal component of the electric field over a circle.
double	IntegrateFluxSphere (const double xc, const double yc, const double zc, const double r, const unsigned int nI=20)
	Integrate the normal component of the electric field over a sphere.
double	IntegrateFluxParallelogram (const double x0, const double y0, const double z0, const double dx1, const double dy1, const double dz1, const double dx2, const double dy2, const double dz2, const unsigned int nU=20, const unsigned int nV=20)
	Integrate the normal component of the electric field over a parallelogram.
double	IntegrateWeightingFluxParallelogram (const std::string &label, const double x0, const double y0, const double z0, const double dx1, const double dy1, const double dz1, const double dx2, const double dy2, const double dz2, const unsigned int nU=20, const unsigned int nV=20)
	Integrate the normal component of the weighting field over a parallelogram.
double	IntegrateFluxLine (const double x0, const double y0, const double z0, const double x1, const double y1, const double z1, const double xp, const double yp, const double zp, const unsigned int nI, const int isign=0)
	Integrate the electric field flux through a line from (x0,y0,z0) to (x1,y1,z1) along a direction (xp,yp,zp).
virtual bool	CrossedWire (const double x0, const double y0, const double z0, const double x1, const double y1, const double z1, double &xc, double &yc, double &zc, const bool centre, double &rc)
	Determine whether the line between two points crosses a wire.
virtual bool	InTrapRadius (const double q0, const double x0, const double y0, const double z0, double &xw, double &yw, double &rw)
	Determine whether a particle is inside the trap radius of a wire.
virtual bool	CrossedPlane (const double x0, const double y0, const double z0, const double x1, const double y1, const double z1, double &xc, double &yc, double &zc)
	Determine whether the line between two points crosses a plane.
void	EnablePeriodicityX (const bool on=true)
	Enable simple periodicity in the direction.
void	EnablePeriodicityY (const bool on=true)
	Enable simple periodicity in the direction.
void	EnablePeriodicityZ (const bool on=true)
	Enable simple periodicity in the direction.
void	IsPeriodic (bool &perx, bool &pery, bool &perz)
	Return periodicity flags.
void	EnableMirrorPeriodicityX (const bool on=true)
	Enable mirror periodicity in the direction.
void	EnableMirrorPeriodicityY (const bool on=true)
	Enable mirror periodicity in the direction.
void	EnableMirrorPeriodicityZ (const bool on=true)
	Enable mirror periodicity in the direction.
void	IsMirrorPeriodic (bool &perx, bool &pery, bool &perz)
	Return mirror periodicity flags.
void	EnableAxialPeriodicityX (const bool on=true)
	Enable axial periodicity in the direction.
void	EnableAxialPeriodicityY (const bool on=true)
	Enable axial periodicity in the direction.
void	EnableAxialPeriodicityZ (const bool on=true)
	Enable axial periodicity in the direction.
void	IsAxiallyPeriodic (bool &perx, bool &pery, bool &perz)
	Return axial periodicity flags.
void	EnableRotationSymmetryX (const bool on=true)
	Enable rotation symmetry around the axis.
void	EnableRotationSymmetryY (const bool on=true)
	Enable rotation symmetry around the axis.
void	EnableRotationSymmetryZ (const bool on=true)
	Enable rotation symmetry around the axis.
void	IsRotationSymmetric (bool &rotx, bool &roty, bool &rotz)
	Return rotation symmetry flags.
void	EnableTriangleSymmetricXY (const bool on=true, const bool oct=2)
	Enable triangular periodicity in the plane.
void	EnableTriangleSymmetricXZ (const bool on=true, const bool oct=2)
	Enable triangular periodicity in the plane.
void	EnableTriangleSymmetricYZ (const bool on=true, const bool oct=2)
	Enable triangular periodicity in the plane.
void	EnableDebugging (const bool on=true)
	Switch on debugging messages.
void	DisableDebugging ()
	Switch off debugging messages.
virtual bool	HasMagneticField () const
	Does the component have a non-zero magnetic field?
virtual bool	HasTownsendMap () const
	Does the component have maps of the Townsend coefficient?
virtual bool	HasAttachmentMap () const
	Does the component have maps of the attachment coefficient?
virtual bool	HasMobilityMap () const
	Does the component have maps of the low-field mobility?
virtual bool	HasVelocityMap () const
	Does the component have velocity maps?
virtual bool	ElectronAttachment (const double, const double, const double, double &eta)
	Get the electron attachment coefficient.
virtual bool	HoleAttachment (const double, const double, const double, double &eta)
	Get the hole attachment coefficient.
virtual bool	ElectronMobility (const double, const double, const double, double &mu)
virtual bool	HoleMobility (const double, const double, const double, double &mu)
	Get the hole Mobility coefficient.
virtual bool	ElectronTownsend (const double, const double, const double, double &alpha)
	Get the electron Townsend coefficient.
virtual bool	HoleTownsend (const double, const double, const double, double &alpha)
	Get the hole Townsend coefficient.
virtual bool	ElectronVelocity (const double, const double, const double, double &vx, double &vy, double &vz)
	Get the electron drift velocity.
virtual bool	HoleVelocity (const double, const double, const double, double &vx, double &vy, double &vz)
	Get the hole drift velocity.
virtual double	StepSizeHint ()

Protected Types
enum class	ElementType { Unknown = 0 , Serendipity = 5 , CurvedTetrahedron = 13 }

Protected Member Functions
void	Reset () override
	Reset the component.
void	Prepare ()
virtual void	SetRange ()
void	UpdatePeriodicity () override
	Verify periodicities.
void	UpdatePeriodicity2d ()
void	UpdatePeriodicityCommon ()
bool	SetDefaultDriftMedium ()
	Find lowest epsilon, check for eps = 0, set default drift media flags.
__DEVICE__ int	Field (const double x, const double y, const double z, double &fx, double &fy, double &fz, int &iel, const std::vector< double > &potentials) const
	Compute the electric/weighting field.
double	Potential (const double x, const double y, const double z, const std::vector< double > &potentials) const
	Compute the electrostatic/weighting potential.
int	FindElement5 (const double x, const double y, double &t1, double &t2, double &t3, double &t4, double jac[4][4], double &det) const
	Find the element for a point in curved quadratic quadrilaterals.
__DEVICE__ int	FindElement13 (const double x, const double y, const double z, double &t1, double &t2, double &t3, double &t4, double jac[4][4], double &det) const
	Find the element for a point in curved quadratic tetrahedra.
int	FindElementCube (const double x, const double y, const double z, double &t1, double &t2, double &t3, TMatrixD &jac, std::vector< TMatrixD > &dN) const
	Find the element for a point in a cube.
__DEVICE__ void	MapCoordinates (double &xpos, double &ypos, double &zpos, bool &xmirrored, bool &ymirrored, bool &zmirrored, double &rcoordinate, double &rotation) const
	Move (xpos, ypos, zpos) to field map coordinates.
__DEVICE__ void	UnmapFields (double &ex, double &ey, double &ez, const double xpos, const double ypos, const double zpos, const bool xmirrored, const bool ymirrored, const bool zmirrored, const double rcoordinate, const double rotation) const
	Move (ex, ey, ez) to global coordinates.
virtual double	GetElementVolume (const size_t i) const
virtual void	GetAspectRatio (const size_t i, double &dmin, double &dmax) const
void	PrintWarning (const std::string &header)
void	PrintNotReady (const std::string &header) const
void	PrintCouldNotOpen (const std::string &header, const std::string &filename) const
void	PrintElement (const std::string &header, const double x, const double y, const double z, const double t1, const double t2, const double t3, const double t4, const size_t i, const std::vector< double > &potential) const
void	TimeInterpolation (const double t, double &f0, double &f1, int &i0, int &i1)
	Interpolation of potential between two time slices.
int	Coordinates3 (const double x, const double y, double &t1, double &t2, double &t3, double &t4, double jac[4][4], double &det, const std::array< double, 8 > &xn, const std::array< double, 8 > &yn) const
	Calculate local coordinates for curved quadratic triangles.
int	Coordinates4 (const double x, const double y, double &t1, double &t2, double &t3, double &t4, double &det, const std::array< double, 8 > &xn, const std::array< double, 8 > &yn) const
	Calculate local coordinates for linear quadrilaterals.
int	Coordinates5 (const double x, const double y, double &t1, double &t2, double &t3, double &t4, double jac[4][4], double &det, const std::array< double, 8 > &xn, const std::array< double, 8 > &yn) const
	Calculate local coordinates for curved quadratic quadrilaterals.
__DEVICE__ void	Coordinates12 (const double x, const double y, const double z, double &t1, double &t2, double &t3, double &t4, const std::array< double, 10 > &xn, const std::array< double, 10 > &yn, const std::array< double, 10 > &zn, const std::array< std::array< double, 3 >, 4 > &w) const
	Calculate local coordinates in linear tetrahedra.
__DEVICE__ int	Coordinates13 (const double x, const double y, const double z, double &t1, double &t2, double &t3, double &t4, double jac[4][4], double &det, const std::array< double, 10 > &xn, const std::array< double, 10 > &yn, const std::array< double, 10 > &zn, const std::array< std::array< double, 3 >, 4 > &w) const
	Calculate local coordinates for curved quadratic tetrahedra.
int	CoordinatesCube (const double x, const double y, const double z, double &t1, double &t2, double &t3, TMatrixD &jac, std::vector< TMatrixD > &dN, const Element &element) const
	Calculate local coordinates for a cube.
void	JacobianCube (const Element &element, const double t1, const double t2, const double t3, TMatrixD &jac, std::vector< TMatrixD > &dN) const
	Calculate Jacobian for a cube.
void	CalculateElementBoundingBoxes ()
	Calculate the bounding boxes of all elements after initialization.
bool	InitializeTetrahedralTree ()
	Initialize the tetrahedral tree.

Static Protected Member Functions
static double	ScalingFactor (std::string unit)
static double	Potential3 (const std::array< double, 6 > &v, const std::array< double, 3 > &t)
	Interpolate the potential in a triangle.
static void	Field3 (const std::array< double, 6 > &v, const std::array< double, 3 > &t, double jac[4][4], const double det, double &ex, double &ey)
	Interpolate the field in a triangle.
static double	Potential5 (const std::array< double, 8 > &v, const std::array< double, 2 > &t)
	Interpolate the potential in a curved quadrilateral.
static void	Field5 (const std::array< double, 8 > &v, const std::array< double, 2 > &t, double jac[4][4], const double det, double &ex, double &ey)
	Interpolate the field in a curved quadrilateral.
static double	Potential13 (const std::array< double, 10 > &v, const std::array< double, 4 > &t)
	Interpolate the potential in a curved quadratic tetrahedron.
static __DEVICE__ void	Field13 (const std::array< double, 10 > &v, const std::array< double, 4 > &t, double jac[4][4], const double det, double &ex, double &ey, double &ez)
	Interpolate the field in a curved quadratic tetrahedron.
static int	ReadInteger (char *token, int def, bool &error)
static double	ReadDouble (char *token, double def, bool &error)
static void	Jacobian3 (const std::array< double, 8 > &xn, const std::array< double, 8 > &yn, const double u, const double v, const double w, double &det, double jac[4][4])
	Calculate Jacobian for curved quadratic triangles.
static void	Jacobian5 (const std::array< double, 8 > &xn, const std::array< double, 8 > &yn, const double u, const double v, double &det, double jac[4][4])
	Calculate Jacobian for curved quadratic quadrilaterals.
static __DEVICE__ void	Jacobian13 (const std::array< double, 10 > &xn, const std::array< double, 10 > &yn, const std::array< double, 10 > &zn, const double fourt0, const double fourt1, const double fourt2, const double fourt3, double &det, double jac[4][4])
	Calculate Jacobian for curved quadratic tetrahedra.
static std::array< std::array< double, 3 >, 4 >	Weights12 (const std::array< double, 10 > &xn, const std::array< double, 10 > &yn, const std::array< double, 10 > &zn)

Protected Attributes
bool	m_is3d = true
ElementType	m_elementType = ElementType::CurvedTetrahedron
std::vector< Element >	m_elements
std::vector< int >	m_elementIndices
std::vector< bool >	m_degenerate
std::vector< std::array< double, 3 > >	m_bbMin
std::vector< std::array< double, 3 > >	m_bbMax
std::vector< std::array< std::array< double, 3 >, 4 > >	m_w12
std::vector< Node >	m_nodes
std::vector< double >	m_pot
std::map< std::string, std::vector< double > >	m_wpot
std::map< std::string, std::vector< std::vector< double > > >	m_dwpot
std::vector< Material >	m_materials
std::map< std::string, WeightingFieldCopy >	m_wfieldCopies
bool	m_hasBoundingBox = false
std::array< double, 3 >	m_minBoundingBox = {{0., 0., 0.}}
std::array< double, 3 >	m_maxBoundingBox = {{0., 0., 0.}}
bool	m_cacheElemBoundingBoxes = false
	Flag to check if bounding boxes of elements are cached.
std::array< double, 3 >	m_mapmin = {{0., 0., 0.}}
std::array< double, 3 >	m_mapmax = {{0., 0., 0.}}
std::array< double, 3 >	m_mapamin = {{0., 0., 0.}}
std::array< double, 3 >	m_mapamax = {{0., 0., 0.}}
std::array< double, 3 >	m_mapna = {{0., 0., 0.}}
std::array< double, 3 >	m_cells = {{0., 0., 0.}}
double	m_mapvmin = 0.
double	m_mapvmax = 0.
std::array< bool, 3 >	m_setang
bool	m_deleteBackground = true
bool	m_warning = false
unsigned int	m_nWarnings = 0
bool	m_printConvergenceWarnings = true
bool	m_checkMultipleElement = false
	Scan for multiple elements that contain a point.
bool	m_useTetrahedralTree = true
std::unique_ptr< GARFIELD_CLASS_NAME(TetrahedralTree)>	m_octree
Protected Attributes inherited from Garfield::Component
std::string	m_className {"Component"}
	Class name.
Geometry *	m_geometry {nullptr}
	Pointer to the geometry.
std::array< double, 3 >	m_b0 = {{0., 0., 0.}}
	Constant magnetic field.
bool	m_ready {false}
	Ready for use?
bool	m_debug {false}
	Switch on/off debugging messages.
std::array< bool, 3 >	m_periodic = {{false, false, false}}
	Simple periodicity in x, y, z.
std::array< bool, 3 >	m_mirrorPeriodic = {{false, false, false}}
	Mirror periodicity in x, y, z.
std::array< bool, 3 >	m_axiallyPeriodic = {{false, false, false}}
	Axial periodicity in x, y, z.
std::array< bool, 3 >	m_rotationSymmetric = {{false, false, false}}
	Rotation symmetry around x-axis, y-axis, z-axis.
std::array< bool, 3 >	m_triangleSymmetric = {{false, false, false}}
	Triangle symmetric in the xy, xz, and yz plane.
int	m_triangleSymmetricOct = 0
	Triangle symmetric octant of imported map (0 < phi < Pi/4 --> octant 1).
const std::array< int, 4 >	m_triangleOctRules = {1, 4, 5, 8}
	Octants where \|x\| >= \|y\|.
bool	m_outsideCone = false
std::vector< double >	m_wdtimes
	Time steps at which the delayed weighting potentials/fields are stored.

Detailed Description

Base class for components based on finite-element field maps.

Definition at line 29 of file ComponentFieldMap.hh.

Member Enumeration Documentation

◆ ElementType

enum class Garfield::ComponentFieldMap::ElementType

strongprotected

Enumerator
Unknown
Serendipity
CurvedTetrahedron

Definition at line 163 of file ComponentFieldMap.hh.

                         {
    Unknown = 0,
    Serendipity = 5,
    CurvedTetrahedron = 13
  };

Constructor & Destructor Documentation

◆ ComponentFieldMap() [1/2]

Garfield::ComponentFieldMap::ComponentFieldMap ( )

delete

Default constructor.

◆ ComponentFieldMap() [2/2]

Garfield::ComponentFieldMap::ComponentFieldMap ( const std::string & name )

Constructor.

◆ ~ComponentFieldMap()

virtual Garfield::ComponentFieldMap::~ComponentFieldMap ( )

virtual

Destructor.

Member Function Documentation

◆ CalculateElementBoundingBoxes()

void Garfield::ComponentFieldMap::CalculateElementBoundingBoxes ( )

protected

Calculate the bounding boxes of all elements after initialization.

◆ Check()

bool Garfield::ComponentFieldMap::Check ( )

Check element aspect ratio.

◆ Coordinates12()

__DEVICE__ void Garfield::ComponentFieldMap::Coordinates12	(	const double	x,
		const double	y,
		const double	z,
		double &	t1,
		double &	t2,
		double &	t3,
		double &	t4,
		const std::array< double, 10 > &	xn,
		const std::array< double, 10 > &	yn,
		const std::array< double, 10 > &	zn,
		const std::array< std::array< double, 3 >, 4 > &	w ) const

protected

Calculate local coordinates in linear tetrahedra.

◆ Coordinates13()

__DEVICE__ int Garfield::ComponentFieldMap::Coordinates13	(	const double	x,
		const double	y,
		const double	z,
		double &	t1,
		double &	t2,
		double &	t3,
		double &	t4,
		double	jac[4][4],
		double &	det,
		const std::array< double, 10 > &	xn,
		const std::array< double, 10 > &	yn,
		const std::array< double, 10 > &	zn,
		const std::array< std::array< double, 3 >, 4 > &	w ) const

protected

Calculate local coordinates for curved quadratic tetrahedra.

◆ Coordinates3()

int Garfield::ComponentFieldMap::Coordinates3	(	const double	x,
		const double	y,
		double &	t1,
		double &	t2,
		double &	t3,
		double &	t4,
		double	jac[4][4],
		double &	det,
		const std::array< double, 8 > &	xn,
		const std::array< double, 8 > &	yn ) const

protected

Calculate local coordinates for curved quadratic triangles.

◆ Coordinates4()

int Garfield::ComponentFieldMap::Coordinates4	(	const double	x,
		const double	y,
		double &	t1,
		double &	t2,
		double &	t3,
		double &	t4,
		double &	det,
		const std::array< double, 8 > &	xn,
		const std::array< double, 8 > &	yn ) const

protected

Calculate local coordinates for linear quadrilaterals.

◆ Coordinates5()

int Garfield::ComponentFieldMap::Coordinates5	(	const double	x,
		const double	y,
		double &	t1,
		double &	t2,
		double &	t3,
		double &	t4,
		double	jac[4][4],
		double &	det,
		const std::array< double, 8 > &	xn,
		const std::array< double, 8 > &	yn ) const

protected

Calculate local coordinates for curved quadratic quadrilaterals.

◆ CoordinatesCube()

int Garfield::ComponentFieldMap::CoordinatesCube	(	const double	x,
		const double	y,
		const double	z,
		double &	t1,
		double &	t2,
		double &	t3,
		TMatrixD *&	jac,
		std::vector< TMatrixD * > &	dN,
		const Element &	element ) const

protected

Calculate local coordinates for a cube.

◆ CopyWeightingPotential()

void Garfield::ComponentFieldMap::CopyWeightingPotential	(	const std::string &	label,
		const std::string &	labelSource,
		const double	x,
		const double	y,
		const double	z,
		const double	alpha,
		const double	beta,
		const double	gamma )

Makes a weighting potential copy of a imported map which can be translated and rotated.

Parameters

label	name of new electrode
labelSource	name of the source electrode that will be copied
x	translation in the x-direction.
y	translation in the y-direction.
z	translation in the z-direction.
alpha	rotation around the x-axis.
beta	rotation around the y-axis.
gamma	rotation around the z-axis.

◆ CreateGPUTransferObject()

double Garfield::ComponentFieldMap::CreateGPUTransferObject ( ComponentGPU *& comp_gpu )

overridevirtual

Create and initialise GPU Transfer class.

Reimplemented from Garfield::Component.

◆ DelayedWeightingPotential()

double Garfield::ComponentFieldMap::DelayedWeightingPotential	(	double	x,
		double	y,
		double	z,
		const double	t,
		const std::string &	label )

overridevirtual

Calculate the delayed weighting potential at a given point and time and for a given electrode.

Parameters

x,y,z	coordinates [cm].
t	time [ns].
label	name of the electrode

Reimplemented from Garfield::Component.

◆ DelayedWeightingPotentials()

void Garfield::ComponentFieldMap::DelayedWeightingPotentials	(	const double	x,
		const double	y,
		const double	z,
		const std::string &	label,
		std::vector< double > &	dwp )

overridevirtual

Calculate the delayed weighting potentials at a given point and for a given electrode, for a set of pre-defined times.

Reimplemented from Garfield::Component.

◆ DriftMedium()

void Garfield::ComponentFieldMap::DriftMedium ( const size_t imat )

Flag a field map material as a drift medium.

◆ ElectricField() [1/3]

std::array< double, 3 > Garfield::Component::ElectricField	(	const double	x,
		const double	y,
		const double	z )

Calculate the drift field [V/cm] at (x, y, z).

◆ ElectricField() [2/3]

void Garfield::ComponentFieldMap::ElectricField	(	const double	x,
		const double	y,
		const double	z,
		double &	ex,
		double &	ey,
		double &	ez,
		double &	v,
		Medium *&	m,
		int &	status )

overridevirtual

Calculate the drift field [V/cm] and potential [V] at (x, y, z).

Implements Garfield::Component.

◆ ElectricField() [3/3]

void Garfield::ComponentFieldMap::ElectricField	(	const double	x,
		const double	y,
		const double	z,
		double &	ex,
		double &	ey,
		double &	ez,
		Medium *&	m,
		int &	status )

overridevirtual

Calculate the drift field at given point.

Parameters

x,y,z	coordinates [cm].
ex,ey,ez	components of the electric field [V/cm].
m	pointer to the medium at this location.
status	status flag

Status flags:

        0: Inside an active medium
      > 0: Inside a wire of type X
-4 ... -1: On the side of a plane where no wires are
       -5: Inside the mesh but not in an active medium
       -6: Outside the mesh
      -10: Unknown potential type (should not occur)
    other: Other cases (should not occur)

Implements Garfield::Component.

◆ EnableCheckMapIndices()

void Garfield::ComponentFieldMap::EnableCheckMapIndices ( const bool on = true )

inline

Definition at line 79 of file ComponentFieldMap.hh.

                                                   {
    m_checkMultipleElement = on;
  }

◆ EnableConvergenceWarnings()

void Garfield::ComponentFieldMap::EnableConvergenceWarnings ( const bool on = true )

inline

Enable or disable warnings that the calculation of the local coordinates did not achieve the requested precision.

Definition at line 95 of file ComponentFieldMap.hh.

                                                       {
    m_printConvergenceWarnings = on;
  }

◆ EnableDeleteBackgroundElements()

void Garfield::ComponentFieldMap::EnableDeleteBackgroundElements ( const bool on = true )

inline

Option to eliminate mesh elements in conductors (default: on).

Definition at line 83 of file ComponentFieldMap.hh.

                                                            {
    m_deleteBackground = on;
  }

◆ EnableTetrahedralTreeForElementSearch()

void Garfield::ComponentFieldMap::EnableTetrahedralTreeForElementSearch ( const bool on = true )

inline

Enable or disable the usage of the tetrahedral tree for searching the element in the mesh.

Definition at line 89 of file ComponentFieldMap.hh.

                                                                   {
    m_useTetrahedralTree = on;
  }

◆ Field()

__DEVICE__ int Garfield::ComponentFieldMap::Field	(	const double	x,
		const double	y,
		const double	z,
		double &	fx,
		double &	fy,
		double &	fz,
		int &	iel,
		const std::vector< double > &	potentials ) const

protected

Compute the electric/weighting field.

◆ Field13()

__DEVICE__ void Garfield::ComponentFieldMap::Field13	(	const std::array< double, 10 > &	v,
		const std::array< double, 4 > &	t,
		double	jac[4][4],
		const double	det,
		double &	ex,
		double &	ey,
		double &	ez )

staticprotected

Interpolate the field in a curved quadratic tetrahedron.

◆ Field3()

void Garfield::ComponentFieldMap::Field3	(	const std::array< double, 6 > &	v,
		const std::array< double, 3 > &	t,
		double	jac[4][4],
		const double	det,
		double &	ex,
		double &	ey )

staticprotected

Interpolate the field in a triangle.

◆ Field5()

void Garfield::ComponentFieldMap::Field5	(	const std::array< double, 8 > &	v,
		const std::array< double, 2 > &	t,
		double	jac[4][4],
		const double	det,
		double &	ex,
		double &	ey )

staticprotected

Interpolate the field in a curved quadrilateral.

◆ FindElement13()

__DEVICE__ int Garfield::ComponentFieldMap::FindElement13	(	const double	x,
		const double	y,
		const double	z,
		double &	t1,
		double &	t2,
		double &	t3,
		double &	t4,
		double	jac[4][4],
		double &	det ) const

protected

Find the element for a point in curved quadratic tetrahedra.

◆ FindElement5()

int Garfield::ComponentFieldMap::FindElement5	(	const double	x,
		const double	y,
		double &	t1,
		double &	t2,
		double &	t3,
		double &	t4,
		double	jac[4][4],
		double &	det ) const

protected

Find the element for a point in curved quadratic quadrilaterals.

◆ FindElementCube()

int Garfield::ComponentFieldMap::FindElementCube	(	const double	x,
		const double	y,
		const double	z,
		double &	t1,
		double &	t2,
		double &	t3,
		TMatrixD *&	jac,
		std::vector< TMatrixD * > &	dN ) const

protected

Find the element for a point in a cube.

◆ GetAspectRatio()

virtual void Garfield::ComponentFieldMap::GetAspectRatio	(	const size_t	i,
		double &	dmin,
		double &	dmax ) const

protectedvirtual

Reimplemented in Garfield::ComponentCST.

◆ GetBoundingBox()

bool Garfield::ComponentFieldMap::GetBoundingBox	(	double &	xmin,
		double &	ymin,
		double &	zmin,
		double &	xmax,
		double &	ymax,
		double &	zmax )

overridevirtual

Get the bounding box coordinates.

Reimplemented from Garfield::Component.

◆ GetConductivity()

double Garfield::ComponentFieldMap::GetConductivity ( const size_t imat ) const

Return the conductivity of a field map material.

◆ GetElement()

bool Garfield::ComponentFieldMap::GetElement	(	const size_t	i,
		double &	vol,
		double &	dmin,
		double &	dmax ) const

Return the volume and aspect ratio of a mesh element.

◆ GetElementaryCell()

bool Garfield::ComponentFieldMap::GetElementaryCell	(	double &	xmin,
		double &	ymin,
		double &	zmin,
		double &	xmax,
		double &	ymax,
		double &	zmax )

overridevirtual

Get the coordinates of the elementary cell.

Reimplemented from Garfield::Component.

◆ GetElementNodes()

bool Garfield::ComponentFieldMap::GetElementNodes	(	const size_t	,
		std::vector< size_t > &	) const

overridevirtual

Get the indices of the nodes constituting a given element.

Reimplemented from Garfield::Component.

◆ GetElementRegion()

bool Garfield::ComponentFieldMap::GetElementRegion	(	const size_t	,
		size_t &	,
		bool &	) const

overridevirtual

Get the region/material of a mesh element and a flag whether it is associated to an active medium.

Reimplemented from Garfield::Component.

◆ GetElementVolume()

virtual double Garfield::ComponentFieldMap::GetElementVolume ( const size_t i ) const

protectedvirtual

Reimplemented in Garfield::ComponentCST.

◆ GetMedium() [1/2]

Medium * Garfield::ComponentFieldMap::GetMedium	(	const double	x,
		const double	y,
		const double	z )

overridevirtual

Get the medium at a given location (x, y, z).

Reimplemented from Garfield::Component.

◆ GetMedium() [2/2]

Medium * Garfield::ComponentFieldMap::GetMedium ( const size_t imat ) const

Return the Medium associated to a field map material.

◆ GetNode()

bool Garfield::ComponentFieldMap::GetNode	(	const size_t	i,
		double &	x,
		double &	y,
		double &	z ) const

overridevirtual

Get the coordinates of a mesh node.

Reimplemented from Garfield::Component.

◆ GetNumberOfElements()

size_t Garfield::ComponentFieldMap::GetNumberOfElements ( ) const

inlineoverridevirtual

Return the number of mesh elements.

Reimplemented from Garfield::Component.

Definition at line 65 of file ComponentFieldMap.hh.

65{ return m_elements.size(); }

Garfield::ComponentFieldMap::m_elements

std::vector< Element > m_elements

Definition ComponentFieldMap.hh:182

◆ GetNumberOfMaterials()

size_t Garfield::ComponentFieldMap::GetNumberOfMaterials ( ) const

inline

Return the number of materials in the field map.

Definition at line 51 of file ComponentFieldMap.hh.

51{ return m_materials.size(); }

Garfield::ComponentFieldMap::m_materials

std::vector< Material > m_materials

Definition ComponentFieldMap.hh:258

◆ GetNumberOfNodes()

size_t Garfield::ComponentFieldMap::GetNumberOfNodes ( ) const

inlineoverridevirtual

Return the number of mesh nodes.

Reimplemented from Garfield::Component.

Definition at line 73 of file ComponentFieldMap.hh.

73{ return m_nodes.size(); }

Garfield::ComponentFieldMap::m_nodes

std::vector< Node > m_nodes

Definition ComponentFieldMap.hh:217

◆ GetPermittivity()

double Garfield::ComponentFieldMap::GetPermittivity ( const size_t imat ) const

Return the relative permittivity of a field map material.

◆ GetPotential()

double Garfield::ComponentFieldMap::GetPotential ( const size_t i ) const

Return the potential at a given node.

◆ GetVoltageRange()

bool Garfield::ComponentFieldMap::GetVoltageRange	(	double &	vmin,
		double &	vmax )

inlineoverridevirtual

Calculate the voltage range [V].

Implements Garfield::Component.

Definition at line 139 of file ComponentFieldMap.hh.

                                                          {
  vmin = m_mapvmin;
  vmax = m_mapvmax;
  return true;
}

◆ GetWeightingPotentials()

std::map< std::string, std::vector< double > > Garfield::ComponentFieldMap::GetWeightingPotentials ( )

inline

Definition at line 135 of file ComponentFieldMap.hh.

                                                               {
  return m_wpot;
}

◆ InitializeTetrahedralTree()

bool Garfield::ComponentFieldMap::InitializeTetrahedralTree ( )

protected

Initialize the tetrahedral tree.

◆ Is3d()

bool Garfield::ComponentFieldMap::Is3d ( )

inlineoverridevirtual

Does the component have a 3D field (map)?

Reimplemented from Garfield::Component.

Definition at line 129 of file ComponentFieldMap.hh.

129{ return m_is3d; }

Garfield::ComponentFieldMap::m_is3d

bool m_is3d

Definition ComponentFieldMap.hh:161

◆ IsInBoundingBox()

bool Garfield::ComponentFieldMap::IsInBoundingBox	(	const double	x,
		const double	y,
		const double	z ) const

inline

Definition at line 123 of file ComponentFieldMap.hh.

                                                                           {
  return x >= m_minBoundingBox[0] && x <= m_maxBoundingBox[0] &&
         y >= m_minBoundingBox[1] && y <= m_maxBoundingBox[1] &&
         z >= m_minBoundingBox[2] && y <= m_maxBoundingBox[2];
}

◆ Jacobian13()

__DEVICE__ void Garfield::ComponentFieldMap::Jacobian13	(	const std::array< double, 10 > &	xn,
		const std::array< double, 10 > &	yn,
		const std::array< double, 10 > &	zn,
		const double	fourt0,
		const double	fourt1,
		const double	fourt2,
		const double	fourt3,
		double &	det,
		double	jac[4][4] )

staticprotected

Calculate Jacobian for curved quadratic tetrahedra.

◆ Jacobian3()

void Garfield::ComponentFieldMap::Jacobian3	(	const std::array< double, 8 > &	xn,
		const std::array< double, 8 > &	yn,
		const double	u,
		const double	v,
		const double	w,
		double &	det,
		double	jac[4][4] )

staticprotected

Calculate Jacobian for curved quadratic triangles.

◆ Jacobian5()

void Garfield::ComponentFieldMap::Jacobian5	(	const std::array< double, 8 > &	xn,
		const std::array< double, 8 > &	yn,
		const double	u,
		const double	v,
		double &	det,
		double	jac[4][4] )

staticprotected

Calculate Jacobian for curved quadratic quadrilaterals.

◆ JacobianCube()

void Garfield::ComponentFieldMap::JacobianCube	(	const Element &	element,
		const double	t1,
		const double	t2,
		const double	t3,
		TMatrixD *&	jac,
		std::vector< TMatrixD * > &	dN ) const

protected

Calculate Jacobian for a cube.

◆ MapCoordinates()

__DEVICE__ void Garfield::ComponentFieldMap::MapCoordinates	(	double &	xpos,
		double &	ypos,
		double &	zpos,
		bool &	xmirrored,
		bool &	ymirrored,
		bool &	zmirrored,
		double &	rcoordinate,
		double &	rotation ) const

protected

Move (xpos, ypos, zpos) to field map coordinates.

◆ NotDriftMedium()

void Garfield::ComponentFieldMap::NotDriftMedium ( const size_t imat )

Flag a field map materials as a non-drift medium.

◆ Potential()

double Garfield::ComponentFieldMap::Potential	(	const double	x,
		const double	y,
		const double	z,
		const std::vector< double > &	potentials ) const

protected

Compute the electrostatic/weighting potential.

◆ Potential13()

double Garfield::ComponentFieldMap::Potential13	(	const std::array< double, 10 > &	v,
		const std::array< double, 4 > &	t )

staticprotected

Interpolate the potential in a curved quadratic tetrahedron.

◆ Potential3()

double Garfield::ComponentFieldMap::Potential3	(	const std::array< double, 6 > &	v,
		const std::array< double, 3 > &	t )

staticprotected

Interpolate the potential in a triangle.

◆ Potential5()

double Garfield::ComponentFieldMap::Potential5	(	const std::array< double, 8 > &	v,
		const std::array< double, 2 > &	t )

staticprotected

Interpolate the potential in a curved quadrilateral.

◆ Prepare()

void Garfield::ComponentFieldMap::Prepare ( )

protected

◆ PrintCouldNotOpen()

void Garfield::ComponentFieldMap::PrintCouldNotOpen	(	const std::string &	header,
		const std::string &	filename ) const

protected

◆ PrintElement()

void Garfield::ComponentFieldMap::PrintElement	(	const std::string &	header,
		const double	x,
		const double	y,
		const double	z,
		const double	t1,
		const double	t2,
		const double	t3,
		const double	t4,
		const size_t	i,
		const std::vector< double > &	potential ) const

protected

◆ PrintMaterials()

void Garfield::ComponentFieldMap::PrintMaterials ( )

List all currently defined materials.

◆ PrintNotReady()

void Garfield::ComponentFieldMap::PrintNotReady ( const std::string & header ) const

protected

◆ PrintRange()

void Garfield::ComponentFieldMap::PrintRange ( )

Show x, y, z, V and angular ranges.

◆ PrintWarning()

void Garfield::ComponentFieldMap::PrintWarning ( const std::string & header )

protected

◆ ReadDouble()

double Garfield::ComponentFieldMap::ReadDouble	(	char *	token,
		double	def,
		bool &	error )

staticprotected

◆ ReadInteger()

int Garfield::ComponentFieldMap::ReadInteger	(	char *	token,
		int	def,
		bool &	error )

staticprotected

◆ Reset()

void Garfield::ComponentFieldMap::Reset ( )

overrideprotectedvirtual

Reset the component.

Implements Garfield::Component.

◆ ScalingFactor()

double Garfield::ComponentFieldMap::ScalingFactor ( std::string unit )

staticprotected

◆ SetDefaultDriftMedium()

bool Garfield::ComponentFieldMap::SetDefaultDriftMedium ( )

protected

Find lowest epsilon, check for eps = 0, set default drift media flags.

◆ SetGas()

void Garfield::ComponentFieldMap::SetGas ( Medium * medium )

Associate all field map materials with a relative permittivity of unity to a given Medium class.

◆ SetMedium()

void Garfield::ComponentFieldMap::SetMedium	(	const size_t	imat,
		Medium *	medium )

Associate a field map material with a Medium object.

◆ SetRange()

virtual void Garfield::ComponentFieldMap::SetRange ( )

protectedvirtual

Reimplemented in Garfield::ComponentCST.

◆ TimeInterpolation()

void Garfield::ComponentFieldMap::TimeInterpolation	(	const double	t,
		double &	f0,
		double &	f1,
		int &	i0,
		int &	i1 )

protected

Interpolation of potential between two time slices.

◆ UnmapFields()

__DEVICE__ void Garfield::ComponentFieldMap::UnmapFields	(	double &	ex,
		double &	ey,
		double &	ez,
		const double	xpos,
		const double	ypos,
		const double	zpos,
		const bool	xmirrored,
		const bool	ymirrored,
		const bool	zmirrored,
		const double	rcoordinate,
		const double	rotation ) const

protected

Move (ex, ey, ez) to global coordinates.

◆ UpdatePeriodicity()

void Garfield::ComponentFieldMap::UpdatePeriodicity ( )

inlineoverrideprotectedvirtual

Verify periodicities.

Implements Garfield::Component.

Definition at line 327 of file ComponentFieldMap.hh.

                                    {
    if (!m_is3d) UpdatePeriodicity2d();
    UpdatePeriodicityCommon();
  }

◆ UpdatePeriodicity2d()

void Garfield::ComponentFieldMap::UpdatePeriodicity2d ( )

protected

◆ UpdatePeriodicityCommon()

void Garfield::ComponentFieldMap::UpdatePeriodicityCommon ( )

protected

◆ WeightingField()

__DEVICE__ void Garfield::ComponentFieldMap::WeightingField	(	const double	x,
		const double	y,
		const double	z,
		double &	wx,
		double &	wy,
		double &	wz,
		const std::string &	label )

overridevirtual

Calculate the weighting field at a given point and for a given electrode.

Parameters

x,y,z	coordinates [cm].
wx,wy,wz	components of the weighting field [1/cm].
label	name of the electrode

Reimplemented from Garfield::Component.

◆ WeightingPotential()

double Garfield::ComponentFieldMap::WeightingPotential	(	const double	x,
		const double	y,
		const double	z,
		const std::string &	label )

overridevirtual

Calculate the weighting potential at a given point.

Parameters

x,y,z	coordinates [cm].
label	name of the electrode.

Returns: weighting potential [dimensionless].

Reimplemented from Garfield::Component.

◆ Weights12()

std::array< std::array< double, 3 >, 4 > Garfield::ComponentFieldMap::Weights12	(	const std::array< double, 10 > &	xn,
		const std::array< double, 10 > &	yn,
		const std::array< double, 10 > &	zn )

staticprotected

Member Data Documentation

◆ m_bbMax

std::vector<std::array<double, 3> > Garfield::ComponentFieldMap::m_bbMax

protected

Definition at line 199 of file ComponentFieldMap.hh.

◆ m_bbMin

std::vector<std::array<double, 3> > Garfield::ComponentFieldMap::m_bbMin

protected

Definition at line 198 of file ComponentFieldMap.hh.

◆ m_cacheElemBoundingBoxes

bool Garfield::ComponentFieldMap::m_cacheElemBoundingBoxes = false

protected

Flag to check if bounding boxes of elements are cached.

Definition at line 279 of file ComponentFieldMap.hh.

◆ m_cells

std::array<double, 3> Garfield::ComponentFieldMap::m_cells = {{0., 0., 0.}}

protected

Definition at line 297 of file ComponentFieldMap.hh.

297{{0., 0., 0.}};

◆ m_checkMultipleElement

bool Garfield::ComponentFieldMap::m_checkMultipleElement = false

protected

Scan for multiple elements that contain a point.

Definition at line 429 of file ComponentFieldMap.hh.

◆ m_degenerate

std::vector<bool> Garfield::ComponentFieldMap::m_degenerate

protected

Definition at line 190 of file ComponentFieldMap.hh.

◆ m_deleteBackground

bool Garfield::ComponentFieldMap::m_deleteBackground = true

protected

Definition at line 305 of file ComponentFieldMap.hh.

◆ m_dwpot

std::map<std::string, std::vector<std::vector<double> > > Garfield::ComponentFieldMap::m_dwpot

protected

Definition at line 227 of file ComponentFieldMap.hh.

◆ m_elementIndices

std::vector<int> Garfield::ComponentFieldMap::m_elementIndices

protected

Definition at line 183 of file ComponentFieldMap.hh.

◆ m_elements

std::vector<Element> Garfield::ComponentFieldMap::m_elements

protected

Definition at line 182 of file ComponentFieldMap.hh.

◆ m_elementType

ElementType Garfield::ComponentFieldMap::m_elementType = ElementType::CurvedTetrahedron

protected

Definition at line 168 of file ComponentFieldMap.hh.

◆ m_hasBoundingBox

bool Garfield::ComponentFieldMap::m_hasBoundingBox = false

protected

Definition at line 274 of file ComponentFieldMap.hh.

◆ m_is3d

bool Garfield::ComponentFieldMap::m_is3d = true

protected

Definition at line 161 of file ComponentFieldMap.hh.

◆ m_mapamax

std::array<double, 3> Garfield::ComponentFieldMap::m_mapamax = {{0., 0., 0.}}

protected

Definition at line 292 of file ComponentFieldMap.hh.

292{{0., 0., 0.}};

◆ m_mapamin

std::array<double, 3> Garfield::ComponentFieldMap::m_mapamin = {{0., 0., 0.}}

protected

Definition at line 291 of file ComponentFieldMap.hh.

291{{0., 0., 0.}};

◆ m_mapmax

std::array<double, 3> Garfield::ComponentFieldMap::m_mapmax = {{0., 0., 0.}}

protected

Definition at line 290 of file ComponentFieldMap.hh.

290{{0., 0., 0.}};

◆ m_mapmin

std::array<double, 3> Garfield::ComponentFieldMap::m_mapmin = {{0., 0., 0.}}

protected

Definition at line 289 of file ComponentFieldMap.hh.

289{{0., 0., 0.}};

◆ m_mapna

std::array<double, 3> Garfield::ComponentFieldMap::m_mapna = {{0., 0., 0.}}

protected

Definition at line 296 of file ComponentFieldMap.hh.

296{{0., 0., 0.}};

◆ m_mapvmax

double Garfield::ComponentFieldMap::m_mapvmax = 0.

protected

Definition at line 300 of file ComponentFieldMap.hh.

◆ m_mapvmin

double Garfield::ComponentFieldMap::m_mapvmin = 0.

protected

Definition at line 299 of file ComponentFieldMap.hh.

◆ m_materials

std::vector<Material> Garfield::ComponentFieldMap::m_materials

protected

Definition at line 258 of file ComponentFieldMap.hh.

◆ m_maxBoundingBox

std::array<double, 3> Garfield::ComponentFieldMap::m_maxBoundingBox = {{0., 0., 0.}}

protected

Definition at line 276 of file ComponentFieldMap.hh.

276{{0., 0., 0.}};

◆ m_minBoundingBox

std::array<double, 3> Garfield::ComponentFieldMap::m_minBoundingBox = {{0., 0., 0.}}

protected

Definition at line 275 of file ComponentFieldMap.hh.

275{{0., 0., 0.}};

◆ m_nodes

std::vector<Node> Garfield::ComponentFieldMap::m_nodes

protected

Definition at line 217 of file ComponentFieldMap.hh.

◆ m_nWarnings

unsigned int Garfield::ComponentFieldMap::m_nWarnings = 0

protected

Definition at line 309 of file ComponentFieldMap.hh.

◆ m_octree

std::unique_ptr<GARFIELD_CLASS_NAME(TetrahedralTree)> Garfield::ComponentFieldMap::m_octree

protected

Definition at line 436 of file ComponentFieldMap.hh.

◆ m_pot

std::vector<double> Garfield::ComponentFieldMap::m_pot

protected

Definition at line 223 of file ComponentFieldMap.hh.

◆ m_printConvergenceWarnings

bool Garfield::ComponentFieldMap::m_printConvergenceWarnings = true

protected

Definition at line 313 of file ComponentFieldMap.hh.

◆ m_setang

std::array<bool, 3> Garfield::ComponentFieldMap::m_setang

protected

Definition at line 302 of file ComponentFieldMap.hh.

◆ m_useTetrahedralTree

bool Garfield::ComponentFieldMap::m_useTetrahedralTree = true

protected

Definition at line 432 of file ComponentFieldMap.hh.

◆ m_w12

std::vector<std::array<std::array<double, 3>, 4> > Garfield::ComponentFieldMap::m_w12

protected

Definition at line 205 of file ComponentFieldMap.hh.

◆ m_warning

bool Garfield::ComponentFieldMap::m_warning = false

protected

Definition at line 308 of file ComponentFieldMap.hh.

◆ m_wfieldCopies

std::map<std::string, WeightingFieldCopy> Garfield::ComponentFieldMap::m_wfieldCopies

protected

Definition at line 271 of file ComponentFieldMap.hh.

◆ m_wpot

std::map<std::string, std::vector<double> > Garfield::ComponentFieldMap::m_wpot

protected

Definition at line 225 of file ComponentFieldMap.hh.

The documentation for this class was generated from the following file:

/builds/garfield/docs/source/Include/Garfield/ComponentFieldMap.hh

Classes

Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ ElementType

Constructor & Destructor Documentation

◆ ComponentFieldMap() [1/2]

◆ ComponentFieldMap() [2/2]

◆ ~ComponentFieldMap()

Member Function Documentation

◆ CalculateElementBoundingBoxes()

◆ Check()

◆ Coordinates12()

◆ Coordinates13()

◆ Coordinates3()

◆ Coordinates4()

◆ Coordinates5()

◆ CoordinatesCube()

◆ CopyWeightingPotential()

◆ CreateGPUTransferObject()

◆ DelayedWeightingPotential()

◆ DelayedWeightingPotentials()

◆ DriftMedium()

◆ ElectricField() [1/3]

◆ ElectricField() [2/3]

◆ ElectricField() [3/3]

◆ EnableCheckMapIndices()

◆ EnableConvergenceWarnings()

◆ EnableDeleteBackgroundElements()

◆ EnableTetrahedralTreeForElementSearch()

◆ Field()

◆ Field13()

◆ Field3()

◆ Field5()

◆ FindElement13()

◆ FindElement5()

◆ FindElementCube()

◆ GetAspectRatio()

◆ GetBoundingBox()

◆ GetConductivity()

◆ GetElement()

◆ GetElementaryCell()

◆ GetElementNodes()

◆ GetElementRegion()

◆ GetElementVolume()

◆ GetMedium() [1/2]

◆ GetMedium() [2/2]

◆ GetNode()

◆ GetNumberOfElements()

◆ GetNumberOfMaterials()

◆ GetNumberOfNodes()

◆ GetPermittivity()

◆ GetPotential()

◆ GetVoltageRange()

◆ GetWeightingPotentials()

◆ InitializeTetrahedralTree()

◆ Is3d()

◆ IsInBoundingBox()

◆ Jacobian13()

◆ Jacobian3()

◆ Jacobian5()

◆ JacobianCube()

◆ MapCoordinates()

◆ NotDriftMedium()

◆ Potential()

◆ Potential13()

◆ Potential3()

◆ Potential5()

◆ Prepare()

◆ PrintCouldNotOpen()

◆ PrintElement()

◆ PrintMaterials()

◆ PrintNotReady()

◆ PrintRange()

◆ PrintWarning()

◆ ReadDouble()
