Abstract base class for track generation. More...

#include <Track.hh>

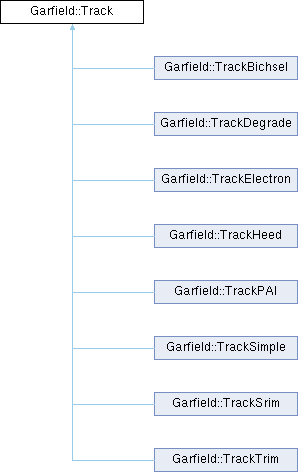

Inheritance diagram for Garfield::Track:

Public Member Functions
	Track ()=delete
	Default constructor.
	Track (const std::string &name)
	Constructor.
virtual	~Track ()
	Destructor.
virtual void	SetParticle (const std::string &part)
	Set the type of charged particle.
void	SetEnergy (const double e)
	Set the particle energy.
void	SetBetaGamma (const double bg)
	Set the relative momentum of the particle.
void	SetBeta (const double beta)
	Set the speed ( $\beta = v/c$ ) of the particle.
void	SetGamma (const double gamma)
	Set the Lorentz factor of the particle.
void	SetMomentum (const double p)
	Set the particle momentum.
void	SetKineticEnergy (const double ekin)
	Set the kinetic energy of the particle.
double	GetEnergy () const
	Return the particle energy.
double	GetBetaGamma () const
	Return the $\beta\gamma$ of the projectile.
double	GetBeta () const
	Return the speed ( $\beta = v/c$ ) of the projectile.
double	GetGamma () const
	Return the Lorentz factor of the projectile.
double	GetMomentum () const
	Return the particle momentum.
double	GetKineticEnergy () const
	Return the kinetic energy of the projectile.
double	GetCharge () const
	Get the charge of the projectile.
double	GetMass () const
	Get the mass [eV / c2] of the projectile.
void	SetSensor (Sensor *s)
	Set the sensor through which to transport the particle.
virtual bool	NewTrack (const double x0, const double y0, const double z0, const double t0, const double dx0, const double dy0, const double dz0)=0
	Calculate a new track starting from (x0, y0, z0) at time t0 in direction (dx0, dy0, dz0).
virtual double	GetClusterDensity ()
	Get the cluster density (number of ionizing collisions per cm or inverse mean free path for ionization).
virtual double	GetStoppingPower ()
	Get the stopping power (mean energy loss [eV] per cm).
void	EnablePlotting (ViewDrift *viewer)
	Switch on plotting.
void	DisablePlotting ()
	Switch off plotting.
void	EnableDebugging ()
	Switch on debugging messages.
void	DisableDebugging ()
	Switch off debugging messages.

Protected Member Functions
void	PlotNewTrack (const double x0, const double y0, const double z0)
void	PlotCluster (const double x0, const double y0, const double z0)

Static Protected Member Functions
static std::array< double, 3 >	StepBfield (const double dt, const double qoverm, const double vmag, double bx, double by, double bz, std::array< double, 3 > &dir)

Protected Attributes
std::string	m_className = "Track"
double	m_q = -1.
int	m_spin = 1
double	m_mass
double	m_energy = 0.
double	m_beta2 = 1.
bool	m_isElectron = false
std::string	m_particleName = "mu-"
Sensor *	m_sensor = nullptr
bool	m_isChanged = true
ViewDrift *	m_viewer = nullptr
bool	m_debug = false
size_t	m_plotId = 0

Detailed Description

Abstract base class for track generation.

Definition at line 15 of file Track.hh.

Constructor & Destructor Documentation

◆ Track() [1/2]

Garfield::Track::Track ( )

delete

Default constructor.

◆ Track() [2/2]

Garfield::Track::Track ( const std::string & name )

Constructor.

◆ ~Track()

virtual Garfield::Track::~Track ( )

inlinevirtual

Destructor.

Definition at line 22 of file Track.hh.

22{}

Member Function Documentation

◆ DisableDebugging()

void Garfield::Track::DisableDebugging ( )

inline

Switch off debugging messages.

Definition at line 93 of file Track.hh.

93{ m_debug = false; }

Garfield::Track::m_debug

bool m_debug

Definition Track.hh:112

◆ DisablePlotting()

void Garfield::Track::DisablePlotting ( )

Switch off plotting.

◆ EnableDebugging()

void Garfield::Track::EnableDebugging ( )

inline

Switch on debugging messages.

Definition at line 91 of file Track.hh.

91{ m_debug = true; }

◆ EnablePlotting()

void Garfield::Track::EnablePlotting ( ViewDrift * viewer )

Switch on plotting.

◆ GetBeta()

double Garfield::Track::GetBeta ( ) const

inline

Return the speed ( $\beta = v/c$ ) of the projectile.

Definition at line 57 of file Track.hh.

57{ return sqrt(m_beta2); }

Garfield::Track::m_beta2

double m_beta2

Definition Track.hh:102

◆ GetBetaGamma()

double Garfield::Track::GetBetaGamma ( ) const

inline

Return the $\beta\gamma$ of the projectile.

Definition at line 55 of file Track.hh.

55{ return sqrt(m_beta2 / (1. - m_beta2)); }

◆ GetCharge()

double Garfield::Track::GetCharge ( ) const

inline

Get the charge of the projectile.

Definition at line 66 of file Track.hh.

66{ return m_q; }

Garfield::Track::m_q

double m_q

Definition Track.hh:98

◆ GetClusterDensity()

virtual double Garfield::Track::GetClusterDensity ( )

inlinevirtual

Get the cluster density (number of ionizing collisions per cm or inverse mean free path for ionization).

Reimplemented in Garfield::TrackBichsel, Garfield::TrackDegrade, Garfield::TrackElectron, Garfield::TrackHeed, Garfield::TrackPAI, and Garfield::TrackSimple.

Definition at line 81 of file Track.hh.

81{ return 0.; }

◆ GetEnergy()

double Garfield::Track::GetEnergy ( ) const

inline

Return the particle energy.

Definition at line 53 of file Track.hh.

53{ return m_energy; }

Garfield::Track::m_energy

double m_energy

Definition Track.hh:101

◆ GetGamma()

double Garfield::Track::GetGamma ( ) const

inline

Return the Lorentz factor of the projectile.

Definition at line 59 of file Track.hh.

59{ return sqrt(1. / (1. - m_beta2)); }

◆ GetKineticEnergy()

double Garfield::Track::GetKineticEnergy ( ) const

inline

Return the kinetic energy of the projectile.

Definition at line 63 of file Track.hh.

63{ return m_energy - m_mass; }

Garfield::Track::m_mass

double m_mass

Definition Track.hh:100

◆ GetMass()

double Garfield::Track::GetMass ( ) const

inline

Get the mass [eV / c2] of the projectile.

Definition at line 68 of file Track.hh.

68{ return m_mass; }

◆ GetMomentum()

double Garfield::Track::GetMomentum ( ) const

inline

Return the particle momentum.

Definition at line 61 of file Track.hh.

61{ return m_mass * sqrt(m_beta2 / (1. - m_beta2)); }

◆ GetStoppingPower()

virtual double Garfield::Track::GetStoppingPower ( )

inlinevirtual

Get the stopping power (mean energy loss [eV] per cm).

Reimplemented in Garfield::TrackBichsel, Garfield::TrackDegrade, Garfield::TrackElectron, Garfield::TrackHeed, Garfield::TrackPAI, and Garfield::TrackSimple.

Definition at line 83 of file Track.hh.

83{ return 0.; }

◆ NewTrack()

virtual bool Garfield::Track::NewTrack	(	const double	x0,
		const double	y0,
		const double	z0,
		const double	t0,
		const double	dx0,
		const double	dy0,
		const double	dz0 )

pure virtual

Calculate a new track starting from (x0, y0, z0) at time t0 in direction (dx0, dy0, dz0).

Implemented in Garfield::TrackBichsel, Garfield::TrackDegrade, Garfield::TrackElectron, Garfield::TrackHeed, Garfield::TrackPAI, Garfield::TrackSimple, Garfield::TrackSrim, and Garfield::TrackTrim.

◆ PlotCluster()

void Garfield::Track::PlotCluster	(	const double	x0,
		const double	y0,
		const double	z0 )

protected

◆ PlotNewTrack()

void Garfield::Track::PlotNewTrack	(	const double	x0,
		const double	y0,
		const double	z0 )

protected

◆ SetBeta()

void Garfield::Track::SetBeta ( const double beta )

Set the speed ( $\beta = v/c$ ) of the particle.

◆ SetBetaGamma()

void Garfield::Track::SetBetaGamma ( const double bg )

Set the relative momentum of the particle.

◆ SetEnergy()

void Garfield::Track::SetEnergy ( const double e )

Set the particle energy.

◆ SetGamma()

void Garfield::Track::SetGamma ( const double gamma )

Set the Lorentz factor of the particle.

◆ SetKineticEnergy()

void Garfield::Track::SetKineticEnergy ( const double ekin )

Set the kinetic energy of the particle.

◆ SetMomentum()

void Garfield::Track::SetMomentum ( const double p )

Set the particle momentum.

◆ SetParticle()

virtual void Garfield::Track::SetParticle ( const std::string & part )

virtual

Set the type of charged particle.

electron,e-
positron,e+
muon,mu-
mu+
pion,pi-
pi+
kaon,K-
K+
proton,p
anti-proton,p-bar
deuteron,d
alpha

Reimplemented in Garfield::TrackDegrade, Garfield::TrackElectron, and Garfield::TrackTrim.

◆ SetSensor()

void Garfield::Track::SetSensor ( Sensor * s )

Set the sensor through which to transport the particle.

◆ StepBfield()

std::array< double, 3 > Garfield::Track::StepBfield	(	const double	dt,
		const double	qoverm,
		const double	vmag,
		double	bx,
		double	by,
		double	bz,
		std::array< double, 3 > &	dir )

staticprotected

Member Data Documentation

◆ m_beta2

double Garfield::Track::m_beta2 = 1.

protected

Definition at line 102 of file Track.hh.

◆ m_className

std::string Garfield::Track::m_className = "Track"

protected

Definition at line 96 of file Track.hh.

◆ m_debug

bool Garfield::Track::m_debug = false

protected

Definition at line 112 of file Track.hh.

◆ m_energy

double Garfield::Track::m_energy = 0.

protected

Definition at line 101 of file Track.hh.

◆ m_isChanged

bool Garfield::Track::m_isChanged = true

protected

Definition at line 108 of file Track.hh.

◆ m_isElectron

bool Garfield::Track::m_isElectron = false

protected

Definition at line 103 of file Track.hh.

◆ m_mass

double Garfield::Track::m_mass

protected

Definition at line 100 of file Track.hh.

◆ m_particleName

std::string Garfield::Track::m_particleName = "mu-"

protected

Definition at line 104 of file Track.hh.

◆ m_plotId

size_t Garfield::Track::m_plotId = 0

protected

Definition at line 114 of file Track.hh.

◆ m_q

double Garfield::Track::m_q = -1.

protected

Definition at line 98 of file Track.hh.

◆ m_sensor

Sensor* Garfield::Track::m_sensor = nullptr

protected

Definition at line 106 of file Track.hh.

◆ m_spin

int Garfield::Track::m_spin = 1

protected

Definition at line 99 of file Track.hh.

◆ m_viewer

ViewDrift* Garfield::Track::m_viewer = nullptr

protected

Definition at line 110 of file Track.hh.

The documentation for this class was generated from the following file:

/builds/garfield/docs/source/Include/Garfield/Track.hh
