Base class for visualization classes. More...

#include <ViewBase.hh>

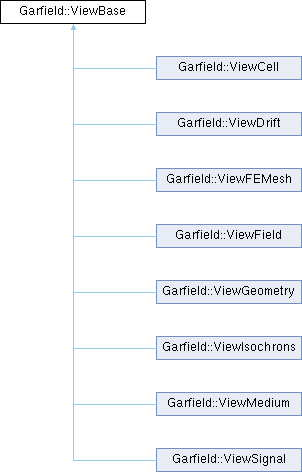

Inheritance diagram for Garfield::ViewBase:

Public Member Functions
	ViewBase ()=delete
	Default constructor.
	ViewBase (const std::string &name)
	Constructor.
virtual	~ViewBase ()=default
	Destructor.
void	SetCanvas (TPad *pad)
	Set the canvas to be painted on.
void	SetCanvas ()
	Unset an external canvas.
TPad *	GetCanvas ()
	Retrieve the canvas.
void	SetArea (const double xmin, const double ymin, const double xmax, const double ymax)
	Set the x- and y-axis limits (in local coordinates of the current viewing plane, if applicable).
virtual void	SetArea (const double xmin, const double ymin, const double zmin, const double xmax, const double ymax, const double zmax)
	Set a bounding box (if applicable).
void	SetArea ()
	Use default x- and y-axis limits (based on the bounding box of the sensor/component, if applicable).
virtual void	SetPlane (const double fx, const double fy, const double fz, const double x0, const double y0, const double z0)
	Set the projection (viewing plane), if applicable.
virtual void	SetPlane (const double fx, const double fy, const double fz, const double x0, const double y0, const double z0, const double hx, const double hy, const double hz)
	Set the projection plane specifying a hint for the in-plane x axis.
void	Rotate (const double angle)
	Rotate the viewing plane (angle in radian).
void	SetPlaneXY ()
	Set the viewing plane to x-y.
void	SetPlaneXZ ()
	Set the viewing plane to x-z.
void	SetPlaneYZ ()
	Set the viewing plane to y-z.
void	SetPlaneZX ()
	Set the viewing plane to z-x.
void	SetPlaneZY ()
	Set the viewing plane to z-y.
void	EnableDebugging (const bool on=true)
	Switch on/off debugging output.

Static Public Member Functions
static std::string	FindUnusedFunctionName (const std::string &s)
	Find an unused function name.
static std::string	FindUnusedHistogramName (const std::string &s)
	Find an unused histogram name.
static std::string	FindUnusedCanvasName (const std::string &s)
	Find an unused canvas name.

Protected Member Functions
void	UpdateProjectionMatrix ()
template<typename T>
void	ToPlane (const T x, const T y, const T z, T &xp, T &yp) const
template<typename T>
bool	InBox (const std::array< T, 3 > &x) const
void	Clip (const std::array< float, 3 > &x0, const std::array< float, 3 > &x1, std::array< float, 3 > &xc) const
void	DrawLine (const std::vector< std::array< float, 3 > > &xl, const short col, const short lw)
std::string	LabelX ()
std::string	LabelY ()
std::string	PlaneDescription ()
bool	PlotLimits (Sensor *sensor, double &xmin, double &ymin, double &xmax, double &ymax) const
bool	PlotLimits (Component *cmp, double &xmin, double &ymin, double &xmax, double &ymax) const
bool	PlotLimitsFromUserBox (double &xmin, double &ymin, double &xmax, double &ymax) const
bool	PlotLimits (std::array< double, 3 > &bbmin, std::array< double, 3 > &bbmax, double &xmin, double &ymin, double &xmax, double &ymax) const

Static Protected Member Functions
static bool	RangeSet (TVirtualPad *)
static void	SetRange (TVirtualPad *pad, const double x0, const double y0, const double x1, const double y1)

Protected Attributes
std::string	m_className = "ViewBase"
bool	m_debug = false
bool	m_userPlotLimits = false
double	m_xMinPlot = -1.
double	m_xMaxPlot = 1.
double	m_yMinPlot = -1.
double	m_yMaxPlot = 1.
bool	m_userBox = false
double	m_xMinBox = -1.
double	m_xMaxBox = 1.
double	m_yMinBox = -1.
double	m_yMaxBox = 1.
double	m_zMinBox = -1.
double	m_zMaxBox = 1.
std::array< std::array< double, 3 >, 3 >	m_proj
std::array< double, 4 >	m_plane {{0, 0, 1, 0}}
std::array< std::array< double, 3 >, 3 >	m_prmat

Private Attributes
TPad *	m_pad = nullptr
std::unique_ptr< TCanvas >	m_canvas

Detailed Description

Base class for visualization classes.

Definition at line 21 of file ViewBase.hh.

Constructor & Destructor Documentation

◆ ViewBase() [1/2]

Garfield::ViewBase::ViewBase ( )

delete

Default constructor.

◆ ViewBase() [2/2]

Garfield::ViewBase::ViewBase ( const std::string & name )

Constructor.

◆ ~ViewBase()

virtual Garfield::ViewBase::~ViewBase ( )

virtualdefault

Destructor.

Member Function Documentation

◆ Clip()

void Garfield::ViewBase::Clip	(	const std::array< float, 3 > &	x0,
		const std::array< float, 3 > &	x1,
		std::array< float, 3 > &	xc ) const

protected

◆ DrawLine()

void Garfield::ViewBase::DrawLine	(	const std::vector< std::array< float, 3 > > &	xl,
		const short	col,
		const short	lw )

protected

◆ EnableDebugging()

void Garfield::ViewBase::EnableDebugging ( const bool on = true )

inline

Switch on/off debugging output.

Definition at line 75 of file ViewBase.hh.

75{ m_debug = on; }

Garfield::ViewBase::m_debug

bool m_debug

Definition ViewBase.hh:88

◆ FindUnusedCanvasName()

std::string Garfield::ViewBase::FindUnusedCanvasName ( const std::string & s )

static

Find an unused canvas name.

◆ FindUnusedFunctionName()

std::string Garfield::ViewBase::FindUnusedFunctionName ( const std::string & s )

static

Find an unused function name.

◆ FindUnusedHistogramName()

std::string Garfield::ViewBase::FindUnusedHistogramName ( const std::string & s )

static

Find an unused histogram name.

◆ GetCanvas()

TPad * Garfield::ViewBase::GetCanvas ( )

Retrieve the canvas.

◆ InBox()

template<typename T>

bool Garfield::ViewBase::InBox ( const std::array< T, 3 > & x ) const

inlineprotected

Definition at line 120 of file ViewBase.hh.

                                            {
    if (!m_userBox) return true;
    if (x[0] < m_xMinBox || x[0] > m_xMaxBox || x[1] < m_yMinBox ||
        x[1] > m_yMaxBox || x[2] < m_yMinBox || x[2] > m_zMaxBox)
      return false;
    return true;
  }

◆ LabelX()

std::string Garfield::ViewBase::LabelX ( )

protected

◆ LabelY()

std::string Garfield::ViewBase::LabelY ( )

protected

◆ PlaneDescription()

std::string Garfield::ViewBase::PlaneDescription ( )

protected

◆ PlotLimits() [1/3]

bool Garfield::ViewBase::PlotLimits	(	Component *	cmp,
		double &	xmin,
		double &	ymin,
		double &	xmax,
		double &	ymax ) const

protected

◆ PlotLimits() [2/3]

bool Garfield::ViewBase::PlotLimits	(	Sensor *	sensor,
		double &	xmin,
		double &	ymin,
		double &	xmax,
		double &	ymax ) const

protected

◆ PlotLimits() [3/3]

bool Garfield::ViewBase::PlotLimits	(	std::array< double, 3 > &	bbmin,
		std::array< double, 3 > &	bbmax,
		double &	xmin,
		double &	ymin,
		double &	xmax,
		double &	ymax ) const

protected

◆ PlotLimitsFromUserBox()

bool Garfield::ViewBase::PlotLimitsFromUserBox	(	double &	xmin,
		double &	ymin,
		double &	xmax,
		double &	ymax ) const

protected

◆ RangeSet()

bool Garfield::ViewBase::RangeSet ( TVirtualPad * )

staticprotected

◆ Rotate()

void Garfield::ViewBase::Rotate ( const double angle )

Rotate the viewing plane (angle in radian).

◆ SetArea() [1/3]

void Garfield::ViewBase::SetArea ( )

inline

Use default x- and y-axis limits (based on the bounding box of the sensor/component, if applicable).

Definition at line 46 of file ViewBase.hh.

                 {
    m_userBox = false;
    m_userPlotLimits = false;
  }

◆ SetArea() [2/3]

void Garfield::ViewBase::SetArea	(	const double	xmin,
		const double	ymin,
		const double	xmax,
		const double	ymax )

Set the x- and y-axis limits (in local coordinates of the current viewing plane, if applicable).

◆ SetArea() [3/3]

virtual void Garfield::ViewBase::SetArea	(	const double	xmin,
		const double	ymin,
		const double	zmin,
		const double	xmax,
		const double	ymax,
		const double	zmax )

virtual

Set a bounding box (if applicable).

◆ SetCanvas() [1/2]

void Garfield::ViewBase::SetCanvas ( )

inline

Unset an external canvas.

Definition at line 33 of file ViewBase.hh.

33{ m_pad = nullptr; }

Garfield::ViewBase::m_pad

TPad * m_pad

Definition ViewBase.hh:156

◆ SetCanvas() [2/2]

void Garfield::ViewBase::SetCanvas ( TPad * pad )

inline

Set the canvas to be painted on.

Definition at line 31 of file ViewBase.hh.

31{ m_pad = pad; }

◆ SetPlane() [1/2]

virtual void Garfield::ViewBase::SetPlane	(	const double	fx,
		const double	fy,
		const double	fz,
		const double	x0,
		const double	y0,
		const double	z0 )

virtual

Set the projection (viewing plane), if applicable.

Parameters

fx,fy,fz	normal vector
x0,y0,z0	in-plane point

Reimplemented in Garfield::ViewFEMesh.

◆ SetPlane() [2/2]

virtual void Garfield::ViewBase::SetPlane	(	const double	fx,
		const double	fy,
		const double	fz,
		const double	x0,
		const double	y0,
		const double	z0,
		const double	hx,
		const double	hy,
		const double	hz )

virtual

Set the projection plane specifying a hint for the in-plane x axis.

Reimplemented in Garfield::ViewFEMesh.

◆ SetPlaneXY()

void Garfield::ViewBase::SetPlaneXY ( )

Set the viewing plane to x-y.

◆ SetPlaneXZ()

void Garfield::ViewBase::SetPlaneXZ ( )

Set the viewing plane to x-z.

◆ SetPlaneYZ()

void Garfield::ViewBase::SetPlaneYZ ( )

Set the viewing plane to y-z.

◆ SetPlaneZX()

void Garfield::ViewBase::SetPlaneZX ( )

Set the viewing plane to z-x.

◆ SetPlaneZY()

void Garfield::ViewBase::SetPlaneZY ( )

Set the viewing plane to z-y.

◆ SetRange()

void Garfield::ViewBase::SetRange	(	TVirtualPad *	pad,
		const double	x0,
		const double	y0,
		const double	x1,
		const double	y1 )

staticprotected

◆ ToPlane()

template<typename T>

void Garfield::ViewBase::ToPlane	(	const T	x,
		const T	y,
		const T	z,
		T &	xp,
		T &	yp ) const

inlineprotected

Definition at line 114 of file ViewBase.hh.

                                                                    {
    xp = m_prmat[0][0] * x + m_prmat[0][1] * y + m_prmat[0][2] * z;
    yp = m_prmat[1][0] * x + m_prmat[1][1] * y + m_prmat[1][2] * z;
  }

◆ UpdateProjectionMatrix()

void Garfield::ViewBase::UpdateProjectionMatrix ( )

protected

Member Data Documentation

◆ m_canvas

std::unique_ptr<TCanvas> Garfield::ViewBase::m_canvas

private

Definition at line 157 of file ViewBase.hh.

◆ m_className

std::string Garfield::ViewBase::m_className = "ViewBase"

protected

Definition at line 85 of file ViewBase.hh.

◆ m_debug

bool Garfield::ViewBase::m_debug = false

protected

Definition at line 88 of file ViewBase.hh.

◆ m_pad

TPad* Garfield::ViewBase::m_pad = nullptr

private

Definition at line 156 of file ViewBase.hh.

◆ m_plane

std::array<double, 4> Garfield::ViewBase::m_plane {{0, 0, 1, 0}}

protected

Definition at line 105 of file ViewBase.hh.

105{{0, 0, 1, 0}};

◆ m_prmat

std::array<std::array<double, 3>, 3> Garfield::ViewBase::m_prmat

protected

Initial value:

{

{{{1, 0, 0}}, {{0, 1, 0}}, {{0, 0, 1}}}}

Definition at line 107 of file ViewBase.hh.

107 {

108 {{{1, 0, 0}}, {{0, 1, 0}}, {{0, 0, 1}}}};

◆ m_proj

std::array<std::array<double, 3>, 3> Garfield::ViewBase::m_proj

protected

Initial value:

{

{{{1, 0, 0}}, {{0, 1, 0}}, {{0, 0, 0}}}}

Definition at line 103 of file ViewBase.hh.

103 {

104 {{{1, 0, 0}}, {{0, 1, 0}}, {{0, 0, 0}}}};

◆ m_userBox

bool Garfield::ViewBase::m_userBox = false

protected

Definition at line 96 of file ViewBase.hh.

◆ m_userPlotLimits

bool Garfield::ViewBase::m_userPlotLimits = false

protected

Definition at line 91 of file ViewBase.hh.

◆ m_xMaxBox

double Garfield::ViewBase::m_xMaxBox = 1.

protected

Definition at line 97 of file ViewBase.hh.

◆ m_xMaxPlot

double Garfield::ViewBase::m_xMaxPlot = 1.

protected

Definition at line 92 of file ViewBase.hh.

◆ m_xMinBox

double Garfield::ViewBase::m_xMinBox = -1.

protected

Definition at line 97 of file ViewBase.hh.

◆ m_xMinPlot

double Garfield::ViewBase::m_xMinPlot = -1.

protected

Definition at line 92 of file ViewBase.hh.

◆ m_yMaxBox

double Garfield::ViewBase::m_yMaxBox = 1.

protected

Definition at line 98 of file ViewBase.hh.

◆ m_yMaxPlot

double Garfield::ViewBase::m_yMaxPlot = 1.

protected

Definition at line 93 of file ViewBase.hh.

◆ m_yMinBox

double Garfield::ViewBase::m_yMinBox = -1.

protected

Definition at line 98 of file ViewBase.hh.

◆ m_yMinPlot

double Garfield::ViewBase::m_yMinPlot = -1.

protected

Definition at line 93 of file ViewBase.hh.

◆ m_zMaxBox

double Garfield::ViewBase::m_zMaxBox = 1.

protected

Definition at line 99 of file ViewBase.hh.

◆ m_zMinBox

double Garfield::ViewBase::m_zMinBox = -1.

protected

Definition at line 99 of file ViewBase.hh.

The documentation for this class was generated from the following file:

/builds/garfield/docs/source/Include/Garfield/ViewBase.hh

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ViewBase() [1/2]

◆ ViewBase() [2/2]

◆ ~ViewBase()

Member Function Documentation

◆ Clip()

◆ DrawLine()

◆ EnableDebugging()

◆ FindUnusedCanvasName()

◆ FindUnusedFunctionName()

◆ FindUnusedHistogramName()

◆ GetCanvas()

◆ InBox()

◆ LabelX()

◆ LabelY()

◆ PlaneDescription()

◆ PlotLimits() [1/3]

◆ PlotLimits() [2/3]

◆ PlotLimits() [3/3]

◆ PlotLimitsFromUserBox()

◆ RangeSet()

◆ Rotate()

◆ SetArea() [1/3]

◆ SetArea() [2/3]

◆ SetArea() [3/3]

◆ SetCanvas() [1/2]

◆ SetCanvas() [2/2]

◆ SetPlane() [1/2]

◆ SetPlane() [2/2]

◆ SetPlaneXY()

◆ SetPlaneXZ()

◆ SetPlaneYZ()

◆ SetPlaneZX()

◆ SetPlaneZY()

◆ SetRange()

◆ ToPlane()

◆ UpdateProjectionMatrix()

Member Data Documentation

◆ m_canvas

◆ m_className

◆ m_debug

◆ m_pad

◆ m_plane

◆ m_prmat

◆ m_proj

◆ m_userBox

◆ m_userPlotLimits

◆ m_xMaxBox

◆ m_xMaxPlot

◆ m_xMinBox

◆ m_xMinPlot

◆ m_yMaxBox

◆ m_yMaxPlot

◆ m_yMinBox

◆ m_yMinPlot

◆ m_zMaxBox

◆ m_zMinBox
